Main Features

  • Reliable thermal insulation with high density rockwool panels
  • Antistatic and resistant fiber glass conveyor, belt, with high tensile strength PTFE coated advanced fabrics
  • Stringers with no support. for easier movement of the printing technician, integrated into the tunnel dryer
  • Maximum temperature 200ºC
  • Axial low fan for an even and constant hot-air circulation
  • Air purifying filter equipped for the burner
  • External central exhaustion system
  • Yearly production control registration, with a possibility of external use

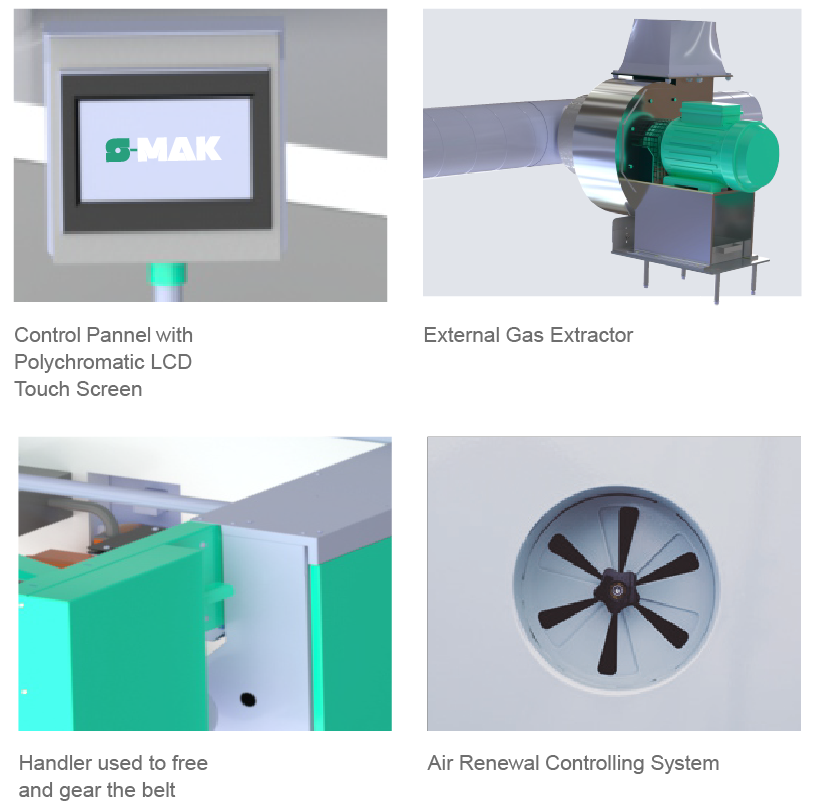

  • Polychromatic touch screen control pannel with temperature and drying time display

Extras

  • Option of 2 conveyor belts with independent speed and direction (optional)
  • Different infeed / outfeed stringer’s length (optional)
  • Powered by gas, electricity or both (optional)
prime
S-MAK HEKLA 3x0.9m 3x1.5m 3x1.8m 4.5x1.5m 4.5x1.8m 6x1.5m 6x1.8m 7.5x1.5m 7.5x1.8m 9x1.5m 9x1.8m
Drying area (mm/in) 3000x900 /118”x36” 3000x1500 /118”x59” 3000x1800 /118”x71” 4500x1500 /177”x59” 4500x1800 /177”x71” 6000x1500 /236”x59” 6000x1800 /236”x71” 7500x1500 /295”x59” 7500x1800 /295”x71” 9000x1500 /354”x59” 9000x1800 /354”x59”
Caloric power on electricity / gas (kW) 18/34 27/34 32/34 32/58 36/58 54/68 64/68 68/68 68/68 72/116 72/116
Electric / gas power system (kVA) 20/2 29/2 34/2 34/2 38/2 58/4 68/4 72/4 72/4 76/4 76/4
GPL gas consume min–max (Nm³/h / BTU) 0.5–1.3 / 39000–120000 0.9–2.3 / 70200–179400 1.0–2.6 / 78000–240000 1.8–4.6 / 140400–358800
Natural gas consume min–max (Nm³/h / BTU) 1.2–3.4 / 39000–120000 2.3–5.8 / 70200–179400 2.4–6.8 / 78000–240000 4.6–11.6 / 140400–358800
Pressure min/max (mbar) 3/17
Number of modules 1 6
Slide rails area (mm/in) 950 / 38” 1561 / 60”
Total length (mm/in) 4770/188” 5952/234” 5952/234” 7560/298” 7560/298” 8825/347” 8825/347” 10460/412” 10460/412” 12085/476” 12085/476”
Total width (mm/in) 1320 / 52” 1916 / 75” 2216 / 87” 1916 / 75” 2216 / 87” 1916 / 75” 2216 / 87” 1916 / 75” 2216 / 87” 1916 / 75” 2216 / 87”
Height (mm/in) 1720 / 68”

Feeding type available: 230 V, 3 x 230 V, 3 x 400 V on 50Hz or 60Hz
